Equipment Specifications

PAN ASIA LINE has in its inventory a mix of 20 HD and 40 HC to meet the requirements of the customers within the region. Most of the equipment in the fleet consists of brand new leased units.

PAN ASIA LINE operates with a fleet of owned/leased fleet of about 6000 TEUS, consisting of 20’, 40’ Dry Van containers, special equipment such as FLAT RACKS, OPEN TOPS and Brand New Reefer Containers.

The company also offers ocean transportation services for hazardous and non-hazardous cargoes, in ISO Tanks, representing some of the well established ISO Tank operators.

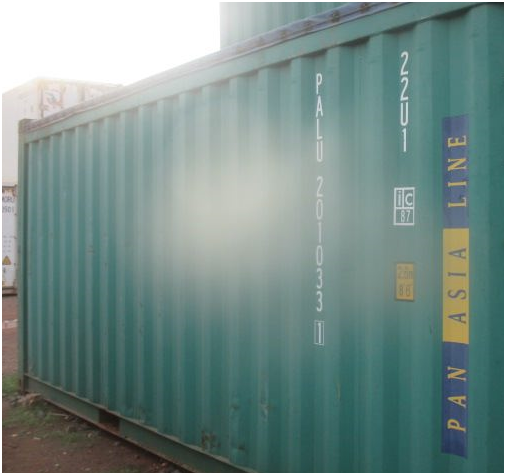

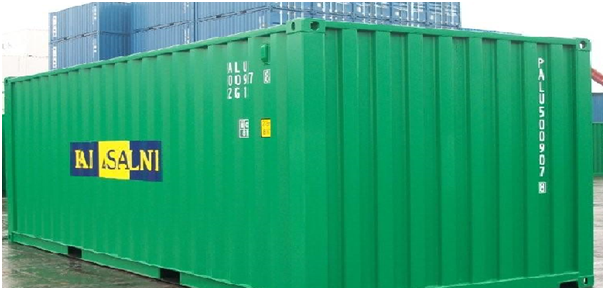

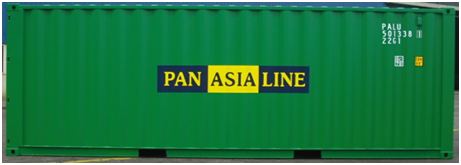

20 DRY VAN

Maximum payload

          28295 Kg

Interior length

          5898 MM

Interior width

          2352 MM

Interior height

          2393 MM

Weight gross

          30480 Kg

Weight Tare

          2185 Kg

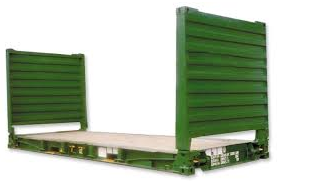

20 FLAT RACK

Maximum payload

         27730 Kg

Interior length

          5558 MM

Interior width

          2438 MM

Interior height

          2213 MM

Weight gross

          30480 Kg

Weight Tare

          2750 Kg

20 OPEN TOP

Maximum payload

         28230 Kg

Interior length

          5458 MM

Interior width

          2350 MM

Interior height

          2351 MM

Weight gross

          30480 Kg

Weight Tare

          2250 Kg

40 OPEN TOP

Maximum payload

         26600 Kg

Interior length

          11592 MM

Interior width

          2350 MM

Interior height

          2351 MM

Weight gross

          30480 Kg

Weight Tare

          3880 Kg

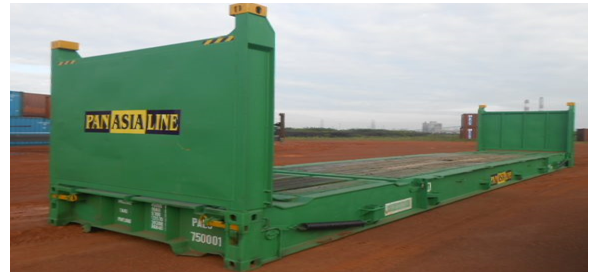

40 FLAT RACK

Maximum payload

         39900 Kg

Interior length

          11692 MM

Interior width

          2438 MM

Interior height

          1955 MM

Weight gross

          45000 Kg

Weight Tare

          5100 Kg

40 HIGH CUBE

Maximum payload

         26590 Kg

Interior length

         12032 MM

Interior width

         2352 MM

Interior height

          2698 MM

Weight gross

          30480 Kg

Weight Tare

          3890 Kg

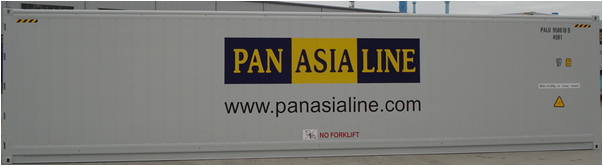

40 HIGH CUBE REEFER

Maximum payload

         30400 Kg

Interior length

         11590 MM

Interior width

         2294 MM

Interior height

          2557 MM

Weight gross

          35000 Kg

Weight Tare

          4600 Kg
